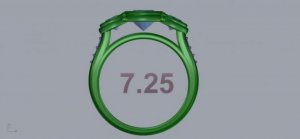

My CAD from ERD and the finished product.

What are the specs on your diamond, if you don't mind :)


redroze

Shiny_Rock
Joined
Jul 15, 2013
Messages
405
I noticed the ERD cads with the grey backgrounds look more realistic than the ones done on white background. One of my old cads is below...looks rather chunky compared to Valmain's erd cad, right? I feel like Valmain's looks like how it will look after finishing, whereas my cad looks pre-finishing - blocky and square.

I'll post mine when I get my ring in the next few days. Love this thread!



yssie

Super_Ideal_Rock
Premium
Joined
Aug 14, 2009
Messages
27,242
Well, here we go... I hope this is helpful to some, at least!

The CAD itself is just a design created using some software that allows 3D modelling. There are several products available - I've used Solidworks, I think Rhinoceros3D is popular for jewellery... the CAD, no matter what its purpose, will never exactly represent the final piece. In a completely CAD/CAM process (computer-aided design and manufacturing) it's used to create the wax, and the wax is used to cast the metal mould, and the mould is polished, engraved, etc. That polishing of the cast removes metal, so the wax (and therefore the CAD if the wax is machine-made) needs to be larger - thicker, heftier - to safely accommodate the metal loss. Exactly how much metal is removed will depend on the shape, structure, and function of the design element itself, and on the person at the wheel that day...

Wink's article with lots of pics:
http://www.pricescope.com/journal/custom-jewelry-design-process-cad

- - - - - - - - - -

Gypsy's thread on creating the Aurora is IMO a MUST READ for anyone looking to start a CAD/CAM project:
[URL='https://www.pricescope.com/community/threads/got-cads-of-band-want-opinions.153285/page-2']https://www.pricescope.com/community/threads/got-cads-of-band-want-opinions.153285/page-2[/URL]

file.jpg file.jpg
file.jpg file.jpg
That last is from her SMTB thread [URL='https://www.pricescope.com/community/threads/my-bgd-aurora-1-2-eternity-is-ready-and-on-the-way.154113/#post-2803288']https://www.pricescope.com/community/threads/my-bgd-aurora-1-2-eternity-is-ready-and-on-the-way.154113/#post-2803288[/URL]

Things I notice right away:

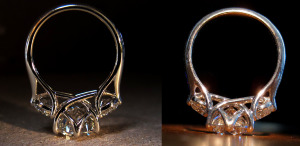

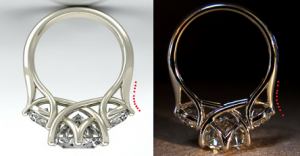

The CAD is (as expected) "heavier" - it's much bulkier than the finished cast.
-The shank is noticeably thicker in the CAD
-The doughnuts are wider and less rounded
-The baskets are wider and less rounded, the "wraps" are taller (N/S)
Small differences that can add up.

The final ring is beautiful, and IMO has lost much of the "top-heaviness" I see in the CAD. Had the CAD looked exactly like the finished Aurora, I'll wager the finished Aurora wouldn't have been structurally sound.

Gypsy/BGD chose to cast it in two parts. I don't know why this was done - perhaps if she sees this thread she can elaborate? I do, however, note one happy side-effect - BGD's bench was able to polish the interiors and undersides of the baskets and doughnuts to a shine that's clear even in photos. This sort of attention to detail requires both ability and foresight; my hand-forged setting by Victor Canera wasn't finished with this sort of care.


- - - - - - - - - -

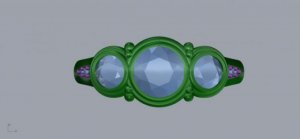

Here's mogster's CAD from ERD from 2011:
[URL='https://www.pricescope.com/community/threads/your-opinions-on-cad-images-pls-hw-style-halo-by-erd.167266/']https://www.pricescope.com/community/threads/your-opinions-on-cad-images-pls-hw-style-halo-by-erd.167266/[/URL]



"Excess metal" in the halo? Check.
Questionable "melee proportions" relative to the centerstone and halo size? Check.
"Chunky, blocky, squarish" feel? Check.
A CAD that, if posted in RT today, would receive a large amount of commentary and a laundry list of things to talk to the vendor about fixing? Check.

And here's the final product.
Delicate, curvy, nicely rounded, and beautifully proportioned, with no excess metal to complain of whatsoever :love:

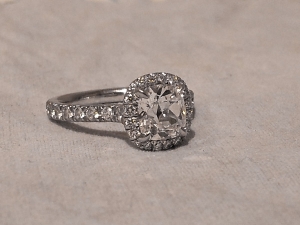

Here's another thread with a couple of closeups of the pave - it is very, very nicely done! Bypassing the tale of misfortune with the outlet, that is :sick:
[URL='https://www.pricescope.com/community/threads/in-my-infinite-wisdom.177195/']https://www.pricescope.com/community/threads/in-my-infinite-wisdom.177195/[/URL]

- - - - - - - - - -

My first and second Butteflies CADs are interesting, I think. Both were excellent learning experiences! The same CAD may well result in pieces with slightly different "feels" in the hands of different benches, different vendors... Both of mine are from WF:


The ability to graduate the thickness of "wire" across a given element is in my opinion one of the biggest advantages of casting this sort of "wire-centric" design. It carries through clearly in the final product - the wires in the gallery supporting the centerstone are visibly thicker than the wires supporting the sidestones in both versions of the design.

The concavity of the shoulders, however, tends to suffer from design to production. This is pronounced in the unplated WG version (bottom) - the exaggerated curve of the cathedral shoulders in the CAD has been significantly leveled in the finished piece. This is one example wherein I personally do prefer the aesthetic presented in the CAD. I can't claim to know whether this sort of artifact is representative of a widespread trend or a quirk specific to WF's bench, but I suspect the former...

From experience I can say with some certainty that curves that arc more severely and that don't extend as far in terms of simple distance tend to fare better, defining "better" as "more likely to maintain the amount of curvature pictured in the CAD after the final polish". Setting sidestones lower and angling them more severely are two ways to shorten the shoulders and create a more pronounced "tulip" curve, given the same size and arrangement of stones, the same inflection point, and the same finger size...



I see the same in Enerchi's ring, though to a less extent.

enerchicad_1.jpg enerchibgd_1.jpg

I think in general "long" surfaces that are plain and simple and easily accessible are more likely to succumb to the effects of a heavier hand during polishing. It makes sense - anyone who's ever sanded a piece of furniture or polished flatware knows that the unmarked edges and knife blades are easier to rub at than the detailed carvings and engravings, and one must reign in the vigour! Less material is polished away from the difficult-to-access nooks and crannies, and depending on the design being cast sometimes there are nooks and crannies that aren't accessible at all, like the interior of a trellis head...


- - - - - - - - - -


The point I'm trying to make is that a CAD is just one part of a long and involved procedure, and it is not reasonable to try to pre-determine the outcome - the final result of all these various processes - based on just that one part. CAD certainly is used to create incredibly precise and exacting parts in other industries, but not in this one! For us it's a detailed visualization of a concept. CharmyPoo has mentioned Leif Benner as someone who uses CAD to help understand and visualise what a client is looking for, but doesn't necessarily use it to actually manufacture the piece (ie. CAM a wax directly from the CAD):

CharmyPoo|1323727192|3080029 said:
I will use Leif Benner (http://www.leifbenner.com/) as a case study. I have not worked with him at all because my style is much more delicate than what he does. However, my friend did use him and I felt his working methods to be exceptional. He first made hand drawn sketches for my friend during a brain storming session. He then made a CAD drawing which I reviewed with my friend. We made 4 rounds of revisions to the CAD in which each revision was turned around within a day. Once the CAD was approved, he proceeded to hand make the setting (he may have also used a hand carved wax). The setting looked exactly like the CAD. I found the process extremly helpful and without the CAD drawings ... the design wouldn't be as perfect as it is. I was only able to continously provide recommendations and tweaks after I saw the changes in CAD.

- - - - - - - - - -

A CAD isn't necessary for creating a wax to cast with - the wax for Pothos' graduation ring was hand-carved:
[URL='https://www.pricescope.com/community/threads/my-graduation-ring-is-done-lots-of-pics.182879/']https://www.pricescope.com/community/threads/my-graduation-ring-is-done-lots-of-pics.182879/[/URL]

_2259.jpg 4-dbb8c8cb-317994-800.jpg

- - - - - - - - - -

Other designers like Mike Robinson of RDG forgo the entirety of the CAD/CAM process, preferring instead to paint and hand-forge. This is PinkJewel's masterpiece:
[URL='https://www.pricescope.com/community/threads/pink-diamonds-rdg-mike-robinson-artisan-masterpiece.189171/']https://www.pricescope.com/community/threads/pink-diamonds-rdg-mike-robinson-artisan-masterpiece.189171/[/URL]


And this is Haven's fully hand-forged stunner from Burdeen's, a vendor that does both hand-forging and casting (I am unsure if they work with any CAD programmes). Those vendors are rarities - and, honestly, those vendors' opinions are the only ones I fully trust re. the cast vs. hand-forged debate, because those vendors are the only ones who


- - - - - - - - - -

I think the only truly valid CAD/CAM comparisons are between CADs and casts from the same vendor. I hesitate to further restrict that statement to 'the same bench' because I think it's a vendor's responsibility to ensure integrity of aesthetic between bench changes. More importantly, though, it's crucial to choose a vendor who makes pieces that one generally likes, who one trusts to understand and prioritise the look and feel one wants, and who one trusts to deliver on that look and feel without micromanagement.
And I say that as a serial micromanager!!! That is, a serial micromanager who has found a couple of vendors she trusts implicitly, and from whom she doesn't hesitate to okay a CAD that looks like this knowing that it will be finished into something like this ::)



- - - - - - - - - -
