Why cut asschers with small corners and windmills?

Status
Not open for further replies. Please create a new topic or request for this thread to be opened.

strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 2/10/2008 3:55:50 PM
Author: DiaGem
Looking good...


What are the Pav angles? they dont seem to have to much contrast/range between them?
50 45 37
This is one of my early designs and I could do better today.
When the new design tool comes out in the new DC im going too redo it and fix the uneven crown steps.


diagem

Ideal_Rock
Trade
Joined
Oct 21, 2004
Messages
5,096
Date: 2/10/2008 3:51:04 PM
Author: strmrdr

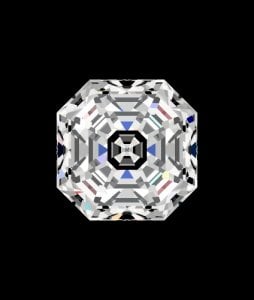

someday I want too have this puppy cut maybe if I ever win the lottery lol
Its a bit on the extreme!!!

To much leakage in your face..., a problem with movements!!!

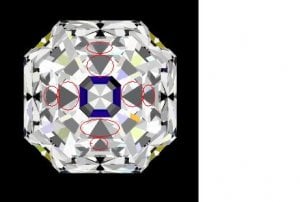

See red circles....



diagem

Ideal_Rock
Trade
Joined
Oct 21, 2004
Messages
5,096
Date: 2/10/2008 4:03:02 PM
Author: DiaGem

Date: 2/10/2008 3:51:04 PM
Author: strmrdr
someday I want too have this puppy cut maybe if I ever win the lottery lol
Its a bit on the extreme!!!

To much leakage in your face..., a problem with movements!!!

See red circles....
Lets try to solve it by going:

pav1 45, pav2 38, pav3 30/29....


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 2/10/2008 4:07:46 PM
Author: DiaGem
Lets try to solve it by going:

pav1 45, pav2 38, pav3 30/29....
anything under 34 p3 doesn''t return light and it becomes a pit.
Part of the large arrow problem is the DC crown step limitation.
Too be honest I like em because otherwise it would be low on contrast.
Once I get the youtube video figured out I will put up a DC movie of this puppy moving.
5 degree tilt back and forth and it dances more than most stones at 20 degrees.


diagem

Ideal_Rock
Trade
Joined
Oct 21, 2004
Messages
5,096
Date: 2/10/2008 4:18:37 PM
Author: strmrdr

Date: 2/10/2008 4:07:46 PM
Author: DiaGem
Lets try to solve it by going:

pav1 45, pav2 38, pav3 30/29....
anything under 34 p3 doesn''t return light and it becomes a pit.
Part of the large arrow problem is the DC crown step limitation.
Too be honest I like em because otherwise it would be low on contrast.
Once I get the youtube video figured out I will put up a DC movie of this puppy moving.
5 degree tilt back and forth and it dances more than most stones at 20 degrees.
Maybe on the virtual model..., but in reality it is NOT the case!!!


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 2/10/2008 4:21:54 PM
Author: DiaGem

Date: 2/10/2008 4:18:37 PM
Author: strmrdr


Date: 2/10/2008 4:07:46 PM
Author: DiaGem
Lets try to solve it by going:

pav1 45, pav2 38, pav3 30/29....
anything under 34 p3 doesn''t return light and it becomes a pit.
Part of the large arrow problem is the DC crown step limitation.
Too be honest I like em because otherwise it would be low on contrast.
Once I get the youtube video figured out I will put up a DC movie of this puppy moving.
5 degree tilt back and forth and it dances more than most stones at 20 degrees.
Maybe on the virtual model..., but in reality it is NOT the case!!!
change the crown angles and that would change on the virtual model.
I could make it work with lower angles, keep in mind I designed and matched it for this combo.
Somewhere around a 100-150 hours worth of work to make it work.


diagem

Ideal_Rock
Trade
Joined
Oct 21, 2004
Messages
5,096
Date: 2/10/2008 4:30:23 PM
Author: strmrdr


Date: 2/10/2008 4:21:54 PM
Author: DiaGem



Date: 2/10/2008 4:18:37 PM
Author: strmrdr




Date: 2/10/2008 4:07:46 PM
Author: DiaGem
Lets try to solve it by going:

pav1 45, pav2 38, pav3 30/29....
anything under 34 p3 doesn't return light and it becomes a pit.
Part of the large arrow problem is the DC crown step limitation.
Too be honest I like em because otherwise it would be low on contrast.
Once I get the youtube video figured out I will put up a DC movie of this puppy moving.
5 degree tilt back and forth and it dances more than most stones at 20 degrees.
Maybe on the virtual model..., but in reality it is NOT the case!!!
change the crown angles and that would change on the virtual model.
I could make it work with lower angles, keep in mind I designed and matched it for this combo.
Somewhere around a 100-150 hours worth of work to make it work.
You want to tell me you can play around with the lower pav angles?
Try the pav numbers I mentioned..., it should take care of the pointed arrows you see through the face up view...

You might be surprised at the outcome...

I cut many step-cuts with Pav3 (or culet break) at 30 degrees or less!!! I never get a pit! (It is close for comfort sometimes...)


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 2/10/2008 4:51:54 PM
Author: DiaGem
You want to tell me you can play around with the lower pav angles?
Try the pav numbers I mentioned..., it should take care of the pointed arrows you see through the face up view...

You might be surprised at the outcome...

I cut many step-cuts with Pav3 (or culet break) at 30 degrees or less!!! I never get a pit! (It is close for comfort sometimes...)
What I was saying is that the crown on that design is designed too work with the selected pavilion angles.
I could change the crown angles too work with a different set of pavilion angles in a new design.
My power is flickering again so im off the puter for a while.


diagem

Ideal_Rock
Trade
Joined
Oct 21, 2004
Messages
5,096
Date: 2/10/2008 4:56:23 PM
Author: strmrdr

Date: 2/10/2008 4:51:54 PM
Author: DiaGem
You want to tell me you can play around with the lower pav angles?
Try the pav numbers I mentioned..., it should take care of the pointed arrows you see through the face up view...

You might be surprised at the outcome...

I cut many step-cuts with Pav3 (or culet break) at 30 degrees or less!!! I never get a pit! (It is close for comfort sometimes...)
What I was saying is that the crown on that design is designed too work with the selected pavilion angles.
I could change the crown angles too work with a different set of pavilion angles in a new design.
My power is flickering again so im off the puter for a while.
Dont!!! Try changing the the pav angles only..., make them shallower an see how it turns out...

We shall continue tomorrow,


Garry H (Cut Nut)

Super_Ideal_Rock
Trade
Joined
Aug 15, 2000
Messages
18,423
Storm send me a full .dmc, or better still design it in the new version of DiamCalc3 cut designer so I have full control of each angle and i will do some DC3Pro optimization for you (like what AGS do, but on steroids)


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 2/10/2008 5:41:15 PM
Author: Garry H (Cut Nut)
Storm send me a full .dmc, or better still design it in the new version of DiamCalc3 cut designer so I have full control of each angle and i will do some DC3Pro optimization for you (like what AGS do, but on steroids)
check your gmail account.


diagem

Ideal_Rock
Trade
Joined
Oct 21, 2004
Messages
5,096
Date: 2/10/2008 5:00:55 PM
Author: DiaGem

Date: 2/10/2008 4:56:23 PM
Author: strmrdr


Date: 2/10/2008 4:51:54 PM
Author: DiaGem
You want to tell me you can play around with the lower pav angles?
Try the pav numbers I mentioned..., it should take care of the pointed arrows you see through the face up view...

You might be surprised at the outcome...

I cut many step-cuts with Pav3 (or culet break) at 30 degrees or less!!! I never get a pit! (It is close for comfort sometimes...)
What I was saying is that the crown on that design is designed too work with the selected pavilion angles.
I could change the crown angles too work with a different set of pavilion angles in a new design.
My power is flickering again so im off the puter for a while.
Dont!!! Try changing the the pav angles only..., make them shallower an see how it turns out...

We shall continue tomorrow,
Storm..., did you get the chance to try it out?


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 2/11/2008 4:42:36 PM
Author: DiaGem

Date: 2/10/2008 5:00:55 PM
Author: DiaGem


Date: 2/10/2008 4:56:23 PM
Author: strmrdr



Date: 2/10/2008 4:51:54 PM
Author: DiaGem
You want to tell me you can play around with the lower pav angles?
Try the pav numbers I mentioned..., it should take care of the pointed arrows you see through the face up view...

You might be surprised at the outcome...

I cut many step-cuts with Pav3 (or culet break) at 30 degrees or less!!! I never get a pit! (It is close for comfort sometimes...)
What I was saying is that the crown on that design is designed too work with the selected pavilion angles.
I could change the crown angles too work with a different set of pavilion angles in a new design.
My power is flickering again so im off the puter for a while.
Dont!!! Try changing the the pav angles only..., make them shallower an see how it turns out...

We shall continue tomorrow,
Storm..., did you get the chance to try it out?
A little but not enough, I got playing with the cut designer instead.


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295

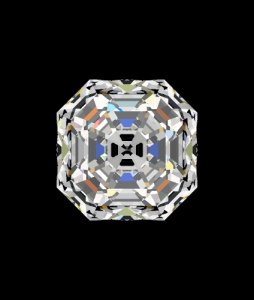

45/38/30



strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
45/38/34
It filled in the arrows some but the overall brightness is down.



strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295

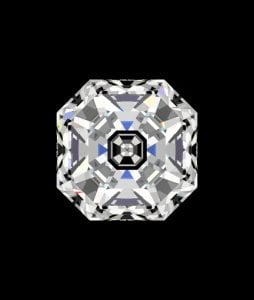

45/37/34
This is one I like second best too my orginal design, I think its lacking in contrast but it did fill in the arrows.
depth is down too 71.1 wow.



strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 2/11/2008 4:57:52 PM
Author: strmrdr
45/37/34
This is one I like second best too my orginal design, I think its lacking in contrast but it did fill in the arrows.
depth is down too 71.1 wow.
wow check out the brightness this would be one of the brightest asschers iv seen these stats for face up.



diagem

Ideal_Rock
Trade
Joined
Oct 21, 2004
Messages
5,096
Date: 2/11/2008 4:57:52 PM
Author: strmrdr
45/37/34
This is one I like second best too my orginal design, I think its lacking in contrast but it did fill in the arrows.
depth is down too 71.1 wow.
It looks good..., the problem will surface when tilting...,

How about making the crown steps a bit thinner at the same time enlarging the table to around 40+/-?


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
This one isnt in your face enough...
c
52.27
36.55
25

p
46
37
34

40% table

70.4% depth
26.4% CH



diagem

Ideal_Rock
Trade
Joined
Oct 21, 2004
Messages
5,096
Date: 2/11/2008 4:57:52 PM
Author: strmrdr
45/37/34
This is one I like second best too my orginal design, I think its lacking in contrast but it did fill in the arrows.
depth is down too 71.1 wow.
What are the CA''s on this modified monster?


diagem

Ideal_Rock
Trade
Joined
Oct 21, 2004
Messages
5,096
Date: 2/11/2008 5:19:21 PM
Author: strmrdr
This one isnt in your face enough...
c
52.27 change it to 46-47 deg.
36.55
25

p
46
37
34

40% table go a bit smaller...


70.4% depth
26.4% CH
Let me see a tilt position....


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
That''s the problem with asschers you can optimise the life right out of them....


diagem

Ideal_Rock
Trade
Joined
Oct 21, 2004
Messages
5,096
Date: 2/11/2008 5:24:59 PM
Author: strmrdr
That''s the problem with asschers you can optimise the life right out of them....
Yep..., now we have to apply it to the real material....


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295

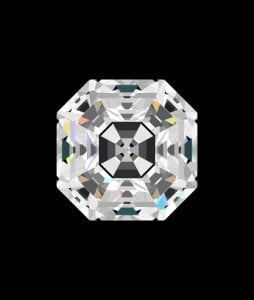

c
47
36.55
25

p
46
37
34
ch 24.3
td: 70.3
t 40%

But I had too make p3 a lot smaller to pull this one off.

edit: Id buy this stone in a heartbeat yummy!



strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
as seen here...
The C1 being slightly larger I cant fix without the cut designer and I havent figured it out yet.



strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295

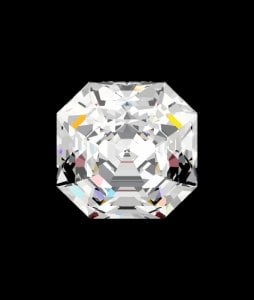

15 degree down tilt



diagem

Ideal_Rock
Trade
Joined
Oct 21, 2004
Messages
5,096
Date: 2/11/2008 5:33:04 PM
Author: strmrdr
c
47
36.55
25

p
46
37
34
ch 24.3
td: 70.3
Table: ?

But I had too make p3 a lot smaller to pull this one off.

edit: Id buy this stone in a heartbeat yummy!


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 2/11/2008 5:43:38 PM
Author: DiaGem

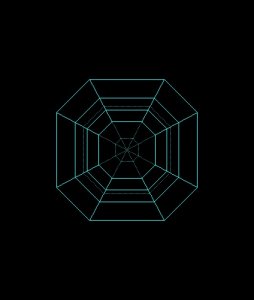

Table size?

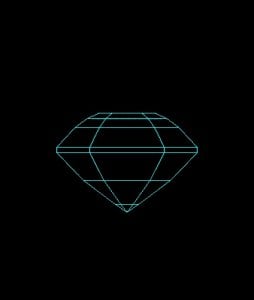

And a profile rendering...
40% im allready off on the next design hehehehehe


Status
Not open for further replies. Please create a new topic or request for this thread to be opened.
Be a part of the community Get 3 HCA Results
Top
