Is it worth it to get a diamond recut?

Discussion in 'RockyTalky' started by winnietucker, Sep 9, 2019.

  1. mwilliamanderson
    Shiny_Rock

    Messages:
    149
    Joined:
    Aug 13, 2013
    by mwilliamanderson » Sep 10, 2019
    Very interesting Serg, thanks for that information! I’m curious how far you would be comfortable increasing the crown angle with a 41 degree pavillion?

    LightBright likes this.
  2. sledge
    Ideal_Rock

    Messages:
    3,331
    Joined:
    Apr 23, 2018
    by sledge » Sep 10, 2019
    @Serg it's funny you mention the 34.5/41 combo. I do get nervous with it because of GIA rounding, etc.

    That said, the past few weeks in trying to help others find a stone I stumbled on 2-3 different stones with this particular combo. Granted, they were from a super ideal vendor so you'd expect precision cutting, etc.

    And while the videos were designed to show off fire, it was obvious (at least to my eyes) that combo is quite lively when executed properly. It was enough of a difference and a combo that I find risky that I actually noted it mentally as it intrigued me.

    I am not as well educated about diamonds as you and a few others here but I am beginning to see and appreciate some of the combos that are sometimes considered borderline, or not within normal parameters. But I also think understanding what makes them risky is something the average consumer struggles with as well so it may not always be obvious when you find the nice outliers.

    While I appreciate seeing a stone live and letting your eyes be the final judge, I feel if the vast majority of people are shown 3 stones they can pick the most sparkly one but few have a depth of reference to know where their top choice of the 3 actually falls in the overall scheme of beauty. Add nuances of rounding, different precision levels of cutting, enhanced jewelry lighting, general lack of knowledge about diamond cut, etc and it seems the average consumer struggles to pick a good stone without imperative data to confirm (or deny) what their eyes see.

    So what better tools and images exist than an ASET or IS image that will help average consumers?

    distracts and Wewechew like this.
  3. TODiamonds
    Rough_Rock

    Messages:
    55
    Joined:
    Jul 27, 2019
    by TODiamonds » Sep 10, 2019
    Although almost all consumers out there lack the diamond knowledge (other than rudimentary 4Cs) to discern between an average cut vs superideal, I would say in terms of "letting your eyes be the final judge", most can pick out the sparkliest and largest looking diamonds. The only thing they won't be able to discern is color (which the vast majority of us are horrible at, even with our knowledge) and clarity (unless it's a horrible SI2 or lower).

    They may not know what makes it sparkly or give it a good spread, but at least intuitively, when compared side to side with other diamonds, my experience has been most people will pick the highest quality diamond, despite their lack of fundamental or technical knowledge.

    AV_, Daisys and Diamonds and Wewechew like this.
  4. Wewechew
    Brilliant_Rock

    Messages:
    1,519
    Joined:
    Apr 8, 2017
    by Wewechew » Sep 10, 2019
    @sledge do you have links to those diamonds? I'd be curious to view them :)







  5. lb0424
    Rough_Rock

    Messages:
    51
    Joined:
    Jun 16, 2015
    by lb0424 » Sep 10, 2019
    I'm perplex with this statement. I thought performance has everything to do with physics. Shouldn't two diamonds with exactly same proportions (using SARIN reports, not GIA cert rounding) give the same performance? Need some education! Thanks :)

  6. Serg
    Ideal_Rock
    Trade

    Messages:
    2,426
    Joined:
    Mar 21, 2002
    by Serg » Sep 10, 2019
    1) There is a big variation in material properties even for diamonds with same clarity and color .
    One diamonds are much more crispy then others because a material is more uniform without RI variations( without stria)
    2) There is a big variation in facet polishing ( flatness and roughness) even between diamonds with excellent polishing grade. Labs grade mainly edges junctions instead facet flatness and roughness which are much more important for diamond optics .

    You can not see such difference in ASET, IS images, Sarin scans but when you compare such diamonds one by one you could easy see a big difference in performance .

    Ss52 and OoohShiny like this.
  7. lb0424
    Rough_Rock

    Messages:
    51
    Joined:
    Jun 16, 2015
    by lb0424 » Sep 10, 2019
    Thank you for the explanation, Serg. There is a lot of emphasis on "cut" when reading PS posts and not much about "polishing". Where can I read more about polishing to understand more on diamond optics? Thanks again!

  8. Demon
    Shiny_Rock

    Messages:
    441
    Joined:
    Feb 16, 2009
    by Demon » Sep 10, 2019
    I'm so glad to have read this! A diamond I have has a 41% pavilion and a 34.5 crown. It seems very lively to me, even though I've never compared it with a super ideal, and don't have an ASET.

  9. Serg
    Ideal_Rock
    Trade

    Messages:
    2,426
    Joined:
    Mar 21, 2002
    by Serg » Sep 11, 2019
    you could start from wiki

    https://en.wikipedia.org/wiki/Mirror

    Surface quality[edit]
    Surface quality, or surface accuracy, measures the deviations from a perfect, ideal surface shape. Increasing the surface quality reduces distortion, artifacts, and aberration in images, and helps increase coherence, collimation, and reduce unwanted divergence in beams. For plane mirrors, this is often described in terms of flatness, while other surface shapes are compared to an ideal shape. The surface quality is typically measured with items like interferometers or optical flats, and are usually measured in wavelengths of light (λ). These deviations can be much larger or much smaller than the surface roughness. A normal household-mirror made with float glass may have flatness tolerances as low as 9–14λ per inch (25.4 mm), equating to a deviation of 5600 through 8800 nanometers from perfect flatness. Precision ground and polished mirrors intended for lasers or telescopes may have tolerances as high as λ/50 (1/50 of the wavelength of the light, or around 12 nm) across the entire surface.[48][47] The surface quality can be affected by factors such as temperature changes, internal stress in the substrate, or even bending effects that occur when combining materials with different coefficients of thermal expansion, similar to a bimetallic strip.[49]

    Surface roughness[edit]
    Surface roughness describes the texture of the surface, often in terms of the depth of the microscopic scratches left by the polishing operations. Surface roughness determines how much of the reflection is specular and how much diffuses, controlling how sharp or blurry the image will be.

    For perfectly specular reflection, the surface roughness must be kept smaller than the wavelength of the light. Microwaves, which sometimes have a wavelength greater than an inch (~25 mm) can reflect specularly off a metal screen-door, continental ice-sheets, or desert sand, while visible light, having wavelengths of only a few hundred nanometers (a few hundred-thousandths of an inch), must meet a very smooth surface to produce specular reflection. For wavelengths that are approaching or are even shorter than the diameter of the atoms, such as X-rays, specular reflection can only be produced by surfaces that are at a grazing incidence from the rays.

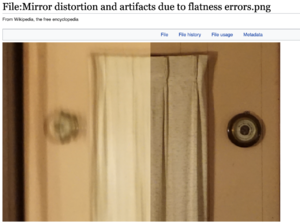

    https://en.wikipedia.org/wiki/File:Mirror_distortion_and_artifacts_due_to_flatness_errors.png

    "A household mirror, demonstrating distortion and artifacts in the image due to a low degree of flatness. The errors become more apparent when viewed at a steep angle or at long distances."
    Screenshot 2019-09-11 10.20.01.png
    In a diamond we have multiply "mirrored " reflections and often with steep angles.
    MTF( Modular transfer function what describe contrast depends resolution ) for system with 2 reflection is MTFxMTF. So quality of light source image become worse and worse after each reflection .

    it is 2d or 3d important reason why fancy cuts with crushed ice type pattern design has less contrast, brightness compare with RBC.
    I believe that most diamonds facets have MTF worse than household mirrors (I did not measured MTF for Diamond facets yet because it is not easy task) .

    moneymeister, Ss52 and OoohShiny like this.
  10. headlight
    Brilliant_Rock

    Messages:
    1,357
    Joined:
    Nov 2, 2003
    by headlight » Sep 11, 2019
    @Serg, do you think GIA does an adequate job with their polish and symmetry grading (in context to their questionable, at best, cut grading)? I understand if you prefer not to comment in this regard.







  11. Serg
    Ideal_Rock
    Trade

    Messages:
    2,426
    Joined:
    Mar 21, 2002
    by Serg » Sep 11, 2019
    There is not any lab that grade diamond facet flatness and roughness .
    if we speak about polishing grade they grade just junctions and surface defects as scratches which have minor influence to diamond optics in compare with facet flatness and roughness.
    They grade that they see instead that has strong influence to optical performance .

    Current Lab grading system ( for polishing and symmetry) pushes cutters to reduce quality of facet flatness.
    easiest way to achieve Excellent junctions is to reduce facet flatness ( to use concave facets instead flat facet)

    Ss52 and AV_ like this.
  12. sledge
    Ideal_Rock

    Messages:
    3,331
    Joined:
    Apr 23, 2018
    by sledge » Sep 11, 2019
    As online purchases continue to soar, how can the industry adapt to educate consumers about facet flatness and roughness and provide some sort of a report that does grade this attribute?

  13. AV_
    Ideal_Rock

    Messages:
    2,241
    Joined:
    Aug 5, 2018
    by AV_ » Sep 11, 2019
    Screens are flat too.

    Video is to read rather than see much like those reflector tools, there might be room for technical wisdom in the same vein.

  14. OoohShiny
    Ideal_Rock

    Messages:
    5,713
    Joined:
    Apr 25, 2014
    by OoohShiny » Sep 11, 2019
    How is it possible to create concave facets in a diamond if one is using a flat polishing wheel??! (where concave = a depression in the surface, and convex = a protrusion from the surface)


    Thank you for posting that excellent table of the different cut options and their effects on light return/contrast patterns :))

    If red is light return and white is contrast, does that mean the very bottom right corner (super-steep, super-deep) actually returns a lot of light but has no contrast??

  15. TODiamonds
    Rough_Rock

    Messages:
    55
    Joined:
    Jul 27, 2019
    by TODiamonds » Sep 11, 2019
    Serg thanks for sharing this table - it is freaking awesome! I've never seen anything like it - really helps visualize the differences between angle combinations. I'm a big fan of the unique insights and thoughtfulness you put into each post.

    Arcadian, Ss52 and OoohShiny like this.






  16. Serg
    Ideal_Rock
    Trade

    Messages:
    2,426
    Joined:
    Mar 21, 2002
    by Serg » Sep 11, 2019
    @OoohShiny
    You are absolutely right I mixed the words.
    Correct statement is:

    "The easiest way to achieve Excellent junctions is to reduce facet flatness ( to use convex facets instead flat facets)"

    Ss52, OoohShiny and AV_ like this.
  17. Serg
    Ideal_Rock
    Trade

    Messages:
    2,426
    Joined:
    Mar 21, 2002
    by Serg » Sep 11, 2019
    The H&A light had been used to create this table. The H&A light is good to control a diamond optic but it is not good to evaluate a diamond brightness . It does not show a leakage .
    There are some bright diamonds in right top corner .

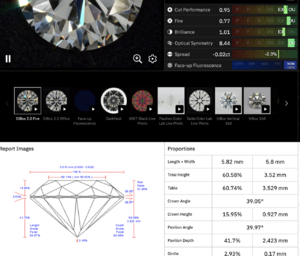

    Around 10 years ago we cut MSS17 RBC sample with Crown 39 Pavilion 40 degrees .

    https://cutwise.com/diamond/385

    What are GIA, AGS grades for this diamond? :)

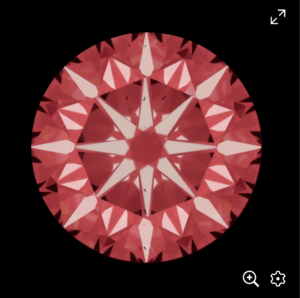

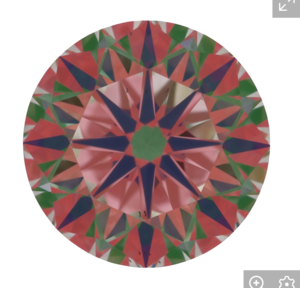

    Screenshot 2019-09-11 18.38.57.png


    Screenshot 2019-09-11 18.39.27.png Screenshot 2019-09-11 18.39.34.png

    Screenshot 2019-09-11 18.30.21.png

    Last edited: Sep 11, 2019
    AV_ likes this.
  18. Karl_K
    Ideal_Rock
    Trade

    Messages:
    8,343
    Joined:
    Aug 4, 2008
    by Karl_K » Sep 11, 2019
    For a ring they would not be that wrong due to obstruction past 1/2 arm length.
    I have been playing with virtual 40c/40p designs both mrb and oec and they are very interesting.
    Put them in a pendant or tiara and they would hold their own with any diamonds.
    I can see why they were at one time considered the best OEC style cuts.(primitive measuring tools is another reason they were cut).

  19. TODiamonds
    Rough_Rock

    Messages:
    55
    Joined:
    Jul 27, 2019
    by TODiamonds » Sep 11, 2019
    Serg do you have (or can you create) a table like the one above, but for projected ASET images instead of H&A light?

  20. Serg
    Ideal_Rock
    Trade

    Messages:
    2,426
    Joined:
    Mar 21, 2002
    by Serg » Sep 11, 2019
    I have tables only with IS and H&A lights. Do you need ASET black or ASET white?
    Screenshot 2019-09-11 21.16.47.png

  21. TODiamonds
    Rough_Rock

    Messages:
    55
    Joined:
    Jul 27, 2019
    by TODiamonds » Sep 11, 2019
    I'm not sure... whichever one better highlights the light leakage I suppose.

  22. sledge
    Ideal_Rock

    Messages:
    3,331
    Joined:
    Apr 23, 2018
    by sledge » Sep 11, 2019
    Thank you @Serg for providing all this data. It is greatly appreciated.

    IMO, white shows leakage more easily but a black version would be nice too.

    OoohShiny and lovedogs like this.
  23. Serg
    Ideal_Rock
    Trade

    Messages:
    2,426
    Joined:
    Mar 21, 2002
    Arcadian, AV_ and TODiamonds like this.
  24. TODiamonds
    Rough_Rock

    Messages:
    55
    Joined:
    Jul 27, 2019
    by TODiamonds » Sep 12, 2019
    Thanks so much for pulling this together Serg! I've saved this for future reference - really appreciate the time you took to pull this together.

    I've never been good at interpreting ASET scans. My rudimentary understanding is: Red = Good, Green = Medicore, White/Gray = Light Leakage (BAD). Black/Blue = contrast. Is that basically the gist of it for those of us who aren't trade professionals?

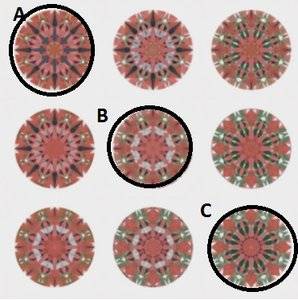

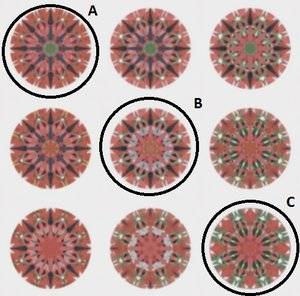

    As an example, I've highlighted 3 different ASET patterns from your table below. Can you give us a quick crash course in how you interpret the scans for A, B, C from your perspective. This would really help educate me on how to view these. Thanks man!

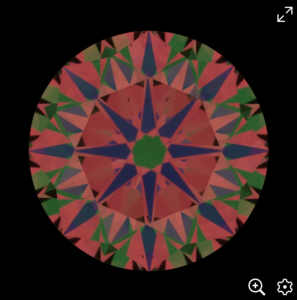

    ASET Comparison.jpg

    Last edited: Sep 12, 2019
  25. Serg
    Ideal_Rock
    Trade

    Messages:
    2,426
    Joined:
    Mar 21, 2002
    by Serg » Sep 12, 2019
    Above statements are very similar to " The Earth is flat ".

    How to explain what "the Earth is sphere" for persons who prefers to see the flat earth"?


    There are not bad or good colors in static cyclopes ASET.
    Red could be Bad, white could be good.

    Screenshot 2019-09-12 20.46.31.png
    Screenshot 2019-09-12 20.44.54.png Screenshot 2019-09-12 20.45.12.png

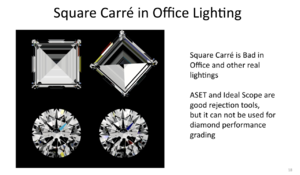

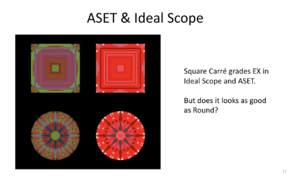

    ASET is not a performance grading tool. ASET is a manufacture repeatability ( consistency) checking tool.
    Some ASET modifications could be very helpful as Research tool for professional cut designers.
    I am very often use ASET modification that includes body obscuration . Classical ASET is not very helpful for cut designing .
    But the flat earth is more practical and simple concept .

    Last edited: Sep 12, 2019
    Arcadian and AV_ like this.
  26. Serg
    Ideal_Rock
    Trade

    Messages:
    2,426
    Joined:
    Mar 21, 2002
    by Serg » Sep 12, 2019

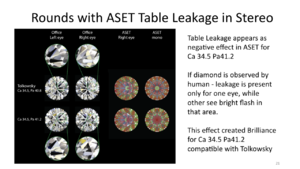

    For cyclops observer strong Light leakage looks as Black facet.
    Head Obscuration ( Black and Blue) is also Black facet for Cyclops.
    Why does Blue mean contrast when White is bad? where is any logic here?
    If Blue is contrast then White is also contrast. if White is bad then blue is bad.
    but each ASET color could be good and bad depends from a difference that left and right eyes see in this diamond facet.
    If both eyes see blue then this facet dead. If both eyes see strong! white then this facet dead.
    But if one eye sees white or blue when second eye sees red then this facet creates strong Brilliancy or Fire.
    if one eye sees red and second eyes sees green then such facet has more Life in comparison when both eyes see red.

  27. TODiamonds
    Rough_Rock

    Messages:
    55
    Joined:
    Jul 27, 2019
    by TODiamonds » Sep 12, 2019
    So basically what you are saying is that ASET shouldn't be used to judge diamond performance?

  28. Serg
    Ideal_Rock
    Trade

    Messages:
    2,426
    Joined:
    Mar 21, 2002
    by Serg » Sep 12, 2019
    A diamond with better performance could have "worse" ASET image .
    A fancy cut diamond with nice ASET image could have poor performance .

    But diamonds with same cut design and with similar ASET images usually have similar performance . It is the reason why ASET is so popular( effective) for selection round diamonds .

  29. distracts
    Ideal_Rock

    Messages:
    4,582
    Joined:
    Oct 11, 2011
    by distracts » Sep 13, 2019
    I have noticed that in particular emerald cuts with “good” asets do not appeal to me because the facets don’t sparkle the same way the ones with “bad” asets do - they go on and off all at once rather than alternating, basically. Which is exactly what a mostly-red aset would predict, I guess. I think you could probably find a way to read one to find the emerald cuts I like but I haven’t seen enough to know.

    AV_ likes this.
  30. TODiamonds
    Rough_Rock

    Messages:
    55
    Joined:
    Jul 27, 2019
    by TODiamonds » Sep 13, 2019
    Thx. I probably should have clarified I was only referring to round diamonds.

    AV_ likes this.
