You mean from the deviation in LGF or a couple of mismatched LGF to main you can get broken arrows and wacky hearts and this is independant from the pavillion main angles which may have little deviation from from one another.Date: 4/23/2010 10:32:25 PM
Author: Karl_K
Cant comment on the diamond itself.Date: 4/23/2010 3:05:17 PM
Author: ChunkyCushionLover

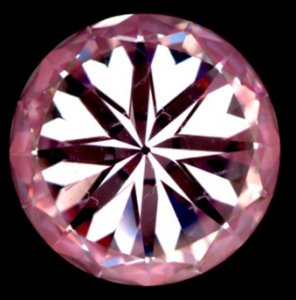

Anyone care to comment on the appearance of these two images and what deviation from ideal you would see in a sarin that causes the broken offset arrows and the areas showing green in the ASET?
This is a ''Near HA'' round.
In general:
This type of variation if it shows up at all on a sarin scan will only show up on the 3d scan/viewer.
A full helium report would also give a clue.
The standard sarin report will not show it.
9 times out of 10 variation in the arrows is really variation in the lower girdles affecting the mains.
The other time it is a wide variation in angle and or placement of the mains.
This also explains why you could have .1 variation in the mains angle with broken arrows and wacky hearts.
Look at a wire diagram of a diamond and you will see why that makes sense.
Also read and understand this article:
http://journal.pricescope.com/Articles/68/1/Do-the-pavilion-mains-drive-light-return-in-the-modern-round-brilliant.aspx
So it could be the case, its not the variation or placement of the mains but likely some of the LGF angles that don''t fit the main angles.
In the linked article the focus is under the table, in these images there is no problem under the table but it is the areas in the top part of the LGF that are showing signs of only gathering light from the lower angles.
