Asscher ASET Image

Status
Not open for further replies. Please create a new topic or request for this thread to be opened.

kenny

Super_Ideal_Rock
Premium
Joined
Apr 30, 2005
Messages
27,073
Pricescope just posted this ASET explanation, below on the left.

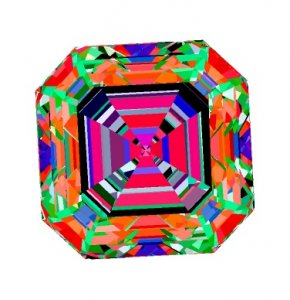

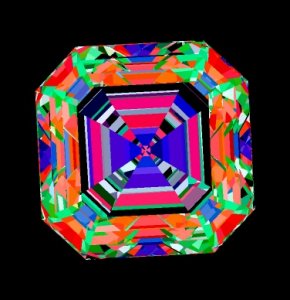

I'm wondering how good this asscher ASET image is, on the right.
It is of the 2.26 ct. I just bought.

Can someone elaborate on exactly why it is good?
If it could be improved upon what exactly would look different? - i.e. More red here or less blue there.




Garry H (Cut Nut)

Super_Ideal_Rock
Trade
Joined
Aug 15, 2000
Messages
14,655
That is very nice - lots of red, and enough parts that are blue or green to ensure great contrast.

That ASET has been done with DiamCalc without leakage.

Personally i prefer to see the version with leakage.

If you have a gemadviser model you can attach the file to a post please


kenny

Super_Ideal_Rock
Premium
Joined
Apr 30, 2005
Messages
27,073
Thanks Garry.
I tried to download the Gem Advisor software but it didn't work.
Maybe because I have a MAC. (Does it work on a MAC?)


kenny

Super_Ideal_Rock
Premium
Joined
Apr 30, 2005
Messages
27,073
Thanks Garry.
If white is leakage it looks like there won't be much.

When I get the stone I'll use the Idealscope you sold me to see if the leakage locations are similar.
Or is the ASET and IS different technology?

BTW, Gem Advisor must work on mathematical descriptions of every angle of every facet since it is not an image captured optically.
Right?

How were those angles captured?
Were they measured off the actual stone using a micrometer or a laser, or is the file the mathematical model that was the *goal* for the cutter?


Garry H (Cut Nut)

Super_Ideal_Rock
Trade
Joined
Aug 15, 2000
Messages
14,655
Date: 11/27/2006 12:15:07 AM
Author: JulieN
Helium scan, isn''t it?
Yes

The stone sits table down on the scanner stage that sits between a big german lens and CCD camera and a white screen on the other side.

The stage rotates and 400 to 800 seperate black and white photo''s are taken and the 3D model is made from that.

Then that is imported into Sergey''s DiamCalc virtual optical software (or Gem adviser which is a free mickey mouse version).

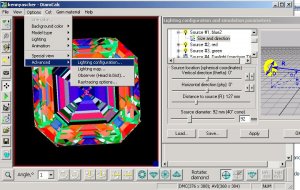

Here you can see that I have changed the blue light from 30 degrees to 40 degrees - one of the tests that AGS use to see if a stone looses too much light (relevant to another thread running concurrently).

We can see this stone of yours still has pretty good light return even when you put your noggin right up close, where as many asschers will die in the pavilion region when a lot of light is blocked in the center.

I posted this so anyone with DiamCalc can see how to change the settings.

You can also save the setting and use it later. But inside this control I often check to see where the ''hit'' starts when I am buying stones sight unseen.

How too make an ASET 40.JPG


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
One of if not the best large asschers around.
In a smaller asscher Id like more blue to show the patterns better in a 2ct plus its perfect.


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 11/27/2006 12:35:55 AM
Author: Garry H (Cut Nut)
The dialogue box blocked the red return bit - your stone is mostly red in the table region to 34 degrees - and is still showing some red parts at 40.

I think you will enjoy it a lot :)
40 degree aset is bogus.
Thanks for posting that as I thought from the other thread this image proves it.
AGS does not use it for their cut grade.


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 11/27/2006 12:15:07 AM
Author: JulieN
Helium scan, isn''t it?
No, sarin but its big enough the sarin does a good job.
The asscher is too big for a helium scanner to be used.


Garry H (Cut Nut)

Super_Ideal_Rock
Trade
Joined
Aug 15, 2000
Messages
14,655
Date: 11/27/2006 12:55:37 AM
Author: strmrdr

Date: 11/27/2006 12:35:55 AM
Author: Garry H (Cut Nut)
The dialogue box blocked the red return bit - your stone is mostly red in the table region to 34 degrees - and is still showing some red parts at 40.

I think you will enjoy it a lot :)
40 degree aset is bogus.
Thanks for posting that as I thought from the other thread this image proves it.
AGS does not use it for their cut grade.
I am sorry that you believe that and even sorrier that you feel that way Storm.

AGS do use 40 degree ASET data in tilt tests right thru from face up to 45 degrees.
They have a proprietary weighting they apply, which I hope in the case of asschers is much more heavily weighted to face up than that they use for rounds and princess cuts.

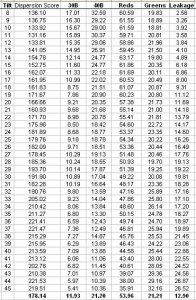

Here is one of their print-outs

Tilt spread sheet.JPG


Garry H (Cut Nut)

Super_Ideal_Rock
Trade
Joined
Aug 15, 2000
Messages
14,655
Date: 11/27/2006 12:57:05 AM
Author: strmrdr

Date: 11/27/2006 12:15:07 AM
Author: JulieN
Helium scan, isn''t it?
No, sarin but its big enough the sarin does a good job.
The asscher is too big for a helium scanner to be used.
The asscher may be too big for Jonathon''s Helium (which has a maximum of 8.4mm width of diamond). But there are much bigger Helium lens systems.

But it is true that Sarin has an easier time on bigger stones.


kenny

Super_Ideal_Rock
Premium
Joined
Apr 30, 2005
Messages
27,073
Is there enough information out this early to predict if this asscher will get an AGS 0 cut rating?


Garry H (Cut Nut)

Super_Ideal_Rock
Trade
Joined
Aug 15, 2000
Messages
14,655
Date: 11/27/2006 1:07:28 AM
Author: kenny
Is there enough information out this early to predict if this asscher will get an AGS 0 cut rating?
The stone must go to AGS Kenny as they are very very strict on sym and polish (too strict in my view).

But they will not be issuing reports until Feb 2007


kenny

Super_Ideal_Rock
Premium
Joined
Apr 30, 2005
Messages
27,073
Thanks Garry.
It means a lot to me that you and Strm both approve of the stone.
It is an important purchase for me.
Kinda scary, actually.




strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 11/27/2006 1:01:36 AM
Author: Garry H (Cut Nut)

Date: 11/27/2006 12:55:37 AM
Author: strmrdr


Date: 11/27/2006 12:35:55 AM
Author: Garry H (Cut Nut)
The dialogue box blocked the red return bit - your stone is mostly red in the table region to 34 degrees - and is still showing some red parts at 40.

I think you will enjoy it a lot :)
40 degree aset is bogus.
Thanks for posting that as I thought from the other thread this image proves it.
AGS does not use it for their cut grade.
I am sorry that you believe that and even sorrier that you feel that way Storm.

AGS do use 40 degree ASET data in tilt tests right thru from face up to 45 degrees.
They have a proprietary weighting they apply, which I hope in the case of asschers is much more heavily weighted to face up than that they use for rounds and princess cuts.

Here is one of their print-outs
That does not agree with other published data Garry.

Also that face up is weighted more heavily than other shapes does not make sence, from between 8 and 22 degrees of tilt is where an asscher will have in a lot of cases more light return even more so than face up.
This gives them a huge scint effect when tilted back and forth. sending huge flashes of light out.



strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 11/27/2006 1:13:08 AM
Author: kenny
Thanks Garry.
It means a lot to me that you and Strm both approve of the stone.
It is an important purchase for me.

Its an awesome asscher, I wish I owned it. :}

Ignore my and Garry''s discussion as it has nothing to do with the quality of your asscher.


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
Date: 11/27/2006 1:07:28 AM
Author: kenny
Is there enough information out this early to predict if this asscher will get an AGS 0 cut rating?
In my opinion ignoring polish/symmetry for a second if this stone dont score AGS0 in performance then there is a serious problem with the AGS asscher scoring system.
Because in its size class they just dont get any better.


Paul-Antwerp

Ideal_Rock
Trade
Joined
Sep 2, 2002
Messages
2,836
Date: 11/27/2006 1:30:43 AM
Author: strmrdr

Date: 11/27/2006 1:07:28 AM
Author: kenny
Is there enough information out this early to predict if this asscher will get an AGS 0 cut rating?
In my opinion ignoring polish/symmetry for a second if this stone dont score AGS0 in performance then there is a serious problem with the AGS asscher scoring system.
Because in its size class they just dont get any better.
It is far too soon to say anything about the scores of current Asschers on the upcoming AGS-system.

Remember the not too distant past, when AGS just put us on another planet, with their princess-grading-system.

Live long,


beryl

Shiny_Rock
Joined
Nov 6, 2003
Messages
288
Date: 11/27/2006 5:01:51 AM
Author: Paul-Antwerp

Date: 11/27/2006 1:30:43 AM
Author: strmrdr


Date: 11/27/2006 1:07:28 AM
Author: kenny
Is there enough information out this early to predict if this asscher will get an AGS 0 cut rating?
In my opinion ignoring polish/symmetry for a second if this stone dont score AGS0 in performance then there is a serious problem with the AGS asscher scoring system.
Because in its size class they just dont get any better.
It is far too soon to say anything about the scores of current Asschers on the upcoming AGS-system.

Remember the not too distant past, when AGS just put us on another planet, with their princess-grading-system.

Live long,
Paul: Please explain what you mean ''just put us on another planet''


Garry H (Cut Nut)

Super_Ideal_Rock
Trade
Joined
Aug 15, 2000
Messages
14,655
Hi Beryl
Paul will be sound asleep - so may I start his answer before you go to sleep?

Date: 11/28/2006 9:14:10 PM
Author: beryl

Date: 11/27/2006 5:01:51 AM
Author: Paul-Antwerp


Date: 11/27/2006 1:30:43 AM
Author: strmrdr



Date: 11/27/2006 1:07:28 AM
Author: kenny
Is there enough information out this early to predict if this asscher will get an AGS 0 cut rating?
In my opinion ignoring polish/symmetry for a second if this stone dont score AGS0 in performance then there is a serious problem with the AGS asscher scoring system.
Because in its size class they just dont get any better.
It is far too soon to say anything about the scores of current Asschers on the upcoming AGS-system.

Remember the not too distant past, when AGS just put us on another planet, with their princess-grading-system.

Live long,
Paul: Please explain what you mean ''just put us on another planet''
AGS will be guiding cutters to ''sweet spots'' using their ASET modelling etc.

This is an example of a stone with a very small table, rather shallow depth etc that it is highly unlikely anyone would ever "chance" upon as a proportion set. AGS found it during their research.

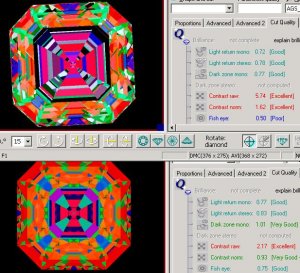

I have shown it here with Kenny''s stone and various DiamCalc scores. Kenny''s stone is exceptional - but there will be more exceptional possabilities once AGS publish their cutters guide lines.

I hope I got that right Paul

aGS and Kenny.JPG


Paul-Antwerp

Ideal_Rock
Trade
Joined
Sep 2, 2002
Messages
2,836
Nice example, Garry, and good to hear from you again, Bruce.

Basically, what I learned from the AGS-princess-system, is the following. Most researchers in the field of diamonds are looking at existing stones, in order to draw conclusions on patterns in light performance, and how good a certain shape can perform.

Because AGS worked with virtual diamonds, they have given us proportion-combinations, which no cutter on earth was using. Most were not even close to the existing way of cutting princess-cuts. But, where the existing way would now score AGS-4 at best, or thereabout, we now have combo''s which score AGS-0, and whose light performance is close to that of an AGS-0 round brilliant.

In a sense, they have put us on another planet in this way.

I do not know whether we will experience the same thing in other shapes, although Garry gives a nice example here. But the recent history in princess-cuts taught me to be careful in predicting an AGS-grade, if I did not study the system in detail yet. In other words, if we did not cut some stones within that system yet.

Live long,


strmrdr

Super_Ideal_Rock
Joined
Nov 1, 2003
Messages
23,295
couple things....
An asscher can be very bright but butt fugly.
Once Jon stopped using the b-scope to select asschers his quality went way up on them.

As Paul was quick to point out shallow asschers are not going to be cut for $$ reasons.
I have found some very high performance shallowish combos but they will never be cut for that reason.

Brightness is the enemy of contrast in an asscher and without enough contrast to form patterns an asscher is just as boring as a princess cut.


Paul-Antwerp

Ideal_Rock
Trade
Joined
Sep 2, 2002
Messages
2,836
Date: 11/29/2006 10:01:05 AM
Author: strmrdr

As Paul was quick to point out shallow asschers are not going to be cut for $$ reasons.
I have found some very high performance shallowish combos but they will never be cut for that reason.
Clarification. It is difficult to find a rough stone, in which such shallow cut makes sense. With the right piece of rough, it is a wonderful solution.

Live long,
