Super ideal proportions and symmetry but Ideal Scope shows light leakage - why!

Discussion in 'Laboratory-Grown Diamonds /Man-Made Diamonds (MMD)' started by rbank, Jun 29, 2019.

  1. rbank
    Rough_Rock

    Messages:
    1
    Joined:
    Jun 29, 2019
    by rbank » Jun 29, 2019
    Hi All! First time posting on Price Scope, but been an avid follower for quite some time! I've read dozens of posts and articles but still have a burning question that I can't seem to figure out. Hoping folks can help :)

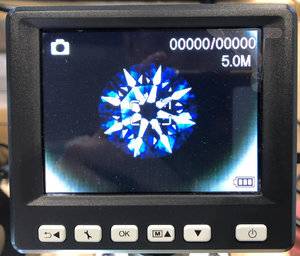

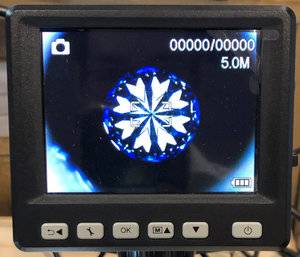

    I have a diamond which has proportions seemingly in the super ideal sweet spot, and shows a fairly clean Hearts & Arrows pattern. However, when viewed with an Ideal Scope, it shows more light leakage than I'd expect for such a diamond (almost like a ring of fire). I can't figure out if I'm not using the Ideal Scope correctly or if I'm missing something else that may be causing the less than brilliant light performance?

    Only thing I could think of, may be the variance between each individual facet's measurements. However, if a stone shows excellent symmetry and H&A, is it safe to say that the variance between individual facets can't be that much?

    Would also love to hear your thoughts on this stone! Thanks in advance!!

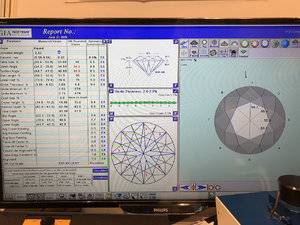

    Note that the last photo is a quick analysis I managed to get done while at a gem fair using a Sarine DiaMension type system (instead made by OGI Systems) to get some additional rough analysis. I didn't have a great chance to clean the stone exactly perfectly, nor center it perfectly, so measurements may be a tad off.

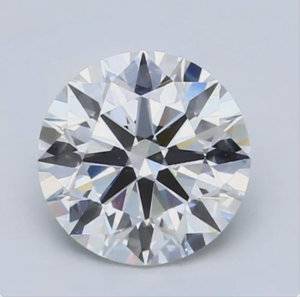

    3283138A 2.33 G VVS2.JPG 3283138A 2.33 G VVS2 Photo.JPG 3283138A 2.33 G VVS2 Hearts.JPG 3283138A 2.33 G VVS2 Arrows.JPG 3283138A 2.33 G VVS2 Analysis.JPG

    Diamond Details:
    Carat: 2.33
    Color: G
    Clarity: VVS2
    Cut: Excellent
    Symmetry: Excellent
    Polish: Excellent
    Dimensions: 8.51-8.54x5.26
    Pavilion Angle: 40.9
    Crown Angle: 34.4
    Table: 56%
    Depth: 61.7%
    Girdle: Thin-Medium
    Culet: Pointed
    Florescence: None
    Star Facets: 51%
    Lower Girdle Facets: 77%
    Crown Depth: 15.0%
    Pavilion Depth: 43.0%

    Elsa2006 likes this.






  2. OoohShiny
    Ideal_Rock

    Messages:
    5,627
    Joined:
    Apr 25, 2014
    by OoohShiny » Jun 29, 2019
    Welcome to the forum :)

    Nice looking stone and great specs!

    Well done on finding someone with a scanner - that's really useful for understanding cut accuracy and consistency, which is hard when GIA and AGS don't grade MMDs either fully or at all.

    Check out the variances in the Measured Values column of the scanner results:

    Crown Angle - 34.2 to 35.0 degrees
    Pavilion Angle - 40.7 to 41.0 degrees
    Lower Half Length - 73.9 to 79.4 percent

    That is quite a wide range on both the crown angle and lower halves. The crown angles all fall within the 'superideal' range, but we don't know if the steeper crown sections are paired with the shallower pavilion angles (which we'd want) or the deeper pavilion angles (which we wouldn't want).

    I'm not an expert but it could be one side of the stone is shallow and the other side is deep, which could explain why half the under-the-table section on the arrows image is a different colour to the other half. (Although it could just be lighting and/or a slightly tilted stone.)


    Look at the Lower Half Lengths as well - GIA rounding is a joke if one can be under 74 and another can be over 79, but the GIA figure is 75%!


    Overall, though, and IMVHO, I think you've done well for an MMD, and it's probably on par with a decent GIA XXX :)) If it looks nice 'in real life' and under a scope is the only time it has issues, don't worry about it, I reckon!

    Last edited: Jun 29, 2019
    kgizo likes this.
  3. Gohsef
    Rough_Rock

    Messages:
    2
    Joined:
    Mar 6, 2019
    by Gohsef » Jun 29, 2019

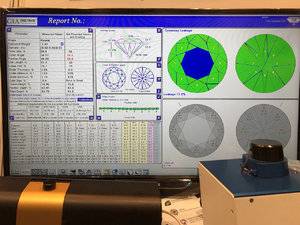

    Thanks for the quick reply! Yeah - looks like the variance in crown/pavilion on each of the individual facets might be the culprit. Attached is a picture of a second more detailed scan which shows the individual facet measurements.

    Am I correct to pair the crown angle and the pavilion angle of the same facet when considering the light performance?

    3283138A 2.33 G VVS2 Analysis Detailed.JPG

  4. OoohShiny
    Ideal_Rock

    Messages:
    5,627
    Joined:
    Apr 25, 2014
    by OoohShiny » Jun 29, 2019
    You appear to have signed up again with a new/different user name?

    AFAIK the pavilion facet under a given crown facet should be considered together, so you'd need to look at the numbers for 1 together, number for 2 together, etc.

    (I may be wrong.)







  5. denverappraiser
    Ideal_Rock
    Trade

    Messages:
    8,638
    Joined:
    Jul 21, 2004
    by denverappraiser » Jun 29, 2019
    Idealscopes are very particular about the positioning of the stone in terms of level, centering, and getting the girdle plane even with the opening of the cone. The big companies here that post photos put a LOT of effort into those pictures. Looking through one 'live' is a different sort of experience.

    OoohShiny, Elsa2006 and kgizo like this.
  6. Gohsef
    Rough_Rock

    Messages:
    2
    Joined:
    Mar 6, 2019
    by Gohsef » Jun 30, 2019
    Thanks for all the pointers! Much appreciated!

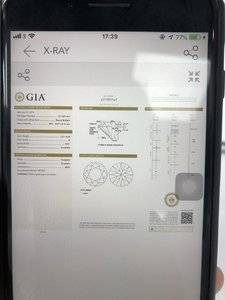

    I happened to be at the Jewellery fair and came across a nice comparable natural diamond at a pretty good price. So I ended up snatching it up. Given the table leakage of the MMD under ideal scope, I decided to give it a miss. Hope I made the right choice o_O. Certificate below in case anyone has any thoughts!

    And apologies about the newb mistake with multiple accounts. I noticed I originally posted with my old account which was saved in my browser, whereas this account is actually my Price Scope Premium account d’oh! Unfortunately looks like there’s no way to edit posts.


  7. Elsa2006
    Rough_Rock

    Messages:
    9
    Joined:
    May 23, 2019
    by Elsa2006 » Jun 30, 2019
    Thank you for this post. I have been similarly curious.
    The specs on the MMD I am still considering (please see below) are similar to the one you were considering.

    The listed values fall within the ideal range. However, when I looked at it under an ASET scope: (1) it was difficult to align all the arrows into view (I didn't have similar difficulties with a comparable stone) and (2) more importantly, there was that ring of death light leakage under the table.
    Related to what denverappraiser has mentioned above, perhaps my lack of experience positioning the stone had something to do with it. But there definitely was some light leakage under the table as I was able to see my skin color directly underneath the ring of death.

    Aside from a gem fair, where can someone get such a comprehensive analysis done to evaluate the crown/pavilion angle variations among the different facets?


    ------------------------------------------------------

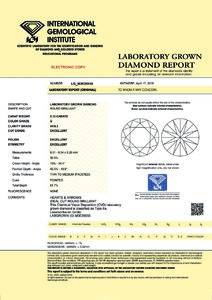

    REPORT CITY DATE ANTWERP, November 25, 2018 (IGI)
    DESCRIPTION: LABORATORY GROWN DIAMOND
    SHAPE AND CUT: ROUND BRILLIANT
    CARAT WEIGHT: 3.03 Carats
    COLOR GRADE: F
    CLARITY GRADE: VS 2
    CUT GRADE: IDEAL
    POLISH VERY: GOOD
    SYMMETRY: EXCELLENT
    Measurements: 9.28 - 9.33 x 5.72 mm
    Table Size: 56.5%
    Crown Height: 15% - 34.5°
    Pavilion Depth: 43% - 40.9°
    Girdle Thickness: MEDIUM TO SLIGHTLY THICK (FACETED)
    Culet: POINTED
    Total Depth: 61.5%
    FLUORESCENCE: NONE
    COMMENTS: The laboratory grown diamond described above is classified as Type IIa. Laserscribe on Girdle: "LAB GROWN LG 341802157"
    ------------------------------------------------------


  8. OoohShiny
    Ideal_Rock

    Messages:
    5,627
    Joined:
    Apr 25, 2014
    by OoohShiny » Jun 30, 2019
    You'll need to find someone with a SARIN scanner (IIRC?) or the same scanner as mentioned above, I reckon.

  9. denverappraiser
    Ideal_Rock
    Trade

    Messages:
    8,638
    Joined:
    Jul 21, 2004
    by denverappraiser » Jul 1, 2019
    Quite a few independent appraisers offer this service. I do, for example. I'm curious though. I don't think I've ever heard of anyone offering it at a 'gem fair' because it's sort of time-consuming and takes some specialized equipment. Working gem shows is all about doing things quickly. Can you describe what you mean and where you saw it?

    OoohShiny likes this.
  10. Elsa2006
    Rough_Rock

    Messages:
    9
    Joined:
    May 23, 2019
    by Elsa2006 » Jul 1, 2019
    The original post mentioned that the analysis was done "at a gem fair using a Sarine DiaMension type system (instead made by OGI Systems)".

    I tried to find a Pricescope recommended appraiser but the zip code search did not yield anything in my area. New to the diamond buying/appraising process, please let me know if you have a suggestion on how best to find an unbiased appraiser.








  11. OoohShiny
    Ideal_Rock

    Messages:
    5,627
    Joined:
    Apr 25, 2014
    by OoohShiny » Jul 1, 2019
    @denverappraiser is an unbiased, PS-recommended appraiser ;-)

    @oldminer is too.

    Both would be excellent choices.

    Elsa2006 likes this.
  12. denverappraiser
    Ideal_Rock
    Trade

    Messages:
    8,638
    Joined:
    Jul 21, 2004
    Elsa2006 and OoohShiny like this.
  13. Elsa2006
    Rough_Rock

    Messages:
    9
    Joined:
    May 23, 2019
    by Elsa2006 » Jul 1, 2019
    Thank you for the valuable information.
    I appreciate the help.
