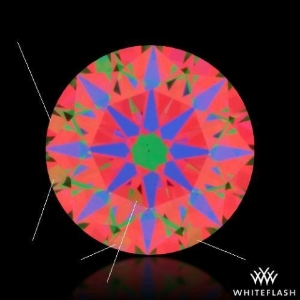

The image on the report is a computer generated ASET from AGS. The image posted by WF is a true ASET photo of the actual stone.maxim_mu|1440228182|3917627 said:What would be the difference?
Dancing Fire|1440274243|3917808 said:The image on the report is a computer generated ASET from AGS. The image posted by WF is a true ASET photo of the actual stone.maxim_mu|1440228182|3917627 said:What would be the difference?
newjourney|1440276566|3917818 said:Dancing Fire|1440274243|3917808 said:The image on the report is a computer generated ASET from AGS. The image posted by WF is a true ASET photo of the actual stone.maxim_mu|1440228182|3917627 said:What would be the difference?
I have often wondered about the reason for this as well. Is it because the computer generated ASET image only reveals one shade of red/blue/green whereas the actual one can show subtle shades of the same color, giving a more detailed/accurate depiction?
Wink|1440282972|3917837 said:newjourney|1440276566|3917818 said:Dancing Fire|1440274243|3917808 said:The image on the report is a computer generated ASET from AGS. The image posted by WF is a true ASET photo of the actual stone.maxim_mu|1440228182|3917627 said:What would be the difference?
I have often wondered about the reason for this as well. Is it because the computer generated ASET image only reveals one shade of red/blue/green whereas the actual one can show subtle shades of the same color, giving a more detailed/accurate depiction?
The computer generated images are only going to be as good as the scan. If there is dust or grease on the diamond, it will affect the scan, as can operator error.
Assuming that the scan is accurate the image will often be more accurate than the actual photograph, as any fraction of a degree of tilt or being off the exact center will result in an inaccurate image. When both the scan and the image are correctly done you will see an amazing similarity between the two. One, the scan, is using 40,000 rays which are traced through the image produced by the scan, the other, the photo, is using the actual light that has gone through the actual diamond to produce the image.
The subtle variations in color are a result of different lighting situations and the camera setup. Ten different businesses can take ten different images of the same diamond and while the shapes provided SHOULD be the same, the colors can be wildly different. I say the shapes should be the same, because if the diamond is not properly centered and perfectly aligned the shapes will be slightly different. The reds will still be reds, and the greens will be greens, etc, but the shades may vary. Getting perfect illumination can be as difficult as getting the diamond properly aligned. I think that the subtle variations of shades are telling you more about the photography setup and lighting than about the properties of the diamonds.
The ASET is designed to tell you from where the light you are seeing is coming from. From the horizon to 45 degrees is green, from 45 degrees to 75 degrees is red, and from 75 degrees to 90 degrees is blue. White or black represent leakage, depending on whether a transparent background is used or a black background.
Since the ray tracing technology is used to derive the cut grade in the AGS system, it makes good sense to me that the images on the AGS report are from that same ray tracing. Each diamond is ray traced as part of its grading process.
Wink
Yes, I think that is all they are telling us. And as you pointed out, there are many variables that cannot be controlled 100% in taking the actual photo which can account for nuances like color mixing. But as you mentioned, the CG image is only as good as the scan, and there is instrumentation deviation even if the scan is taken properly. Very small though. I think the AGS Lab is a pretty trusted source for getting the scan done right and keeping the machines calibrated and operating at their full level of accuracy.Wink|1440344367|3917996 said:Thank you Texas Leaguer,
Do you feel that the mix of colors is telling us anything special other than the facets involved are right on the borders of where they are picking up one color or the other?
Wink
