Starsgem CAD help

Discussion in 'Fabulous Fashion Jewelry' started by pixiepie1987, Jul 16, 2019.

  1. pixiepie1987
    Rough_Rock

    Messages:
    3
    Joined:
    Jun 29, 2019
    by pixiepie1987 » Jul 16, 2019
    CF792AD7-E1EC-4F11-A218-F260BD8F8AE7.png C06C1F3E-08FF-41E5-A750-49F750BA0617.png 6E4C770F-8B11-4696-A718-4E741ADF7E3A.jpeg 19909A39-FF5F-4ACD-9198-1EFA4C0F4EE9.jpeg
    Hi all,

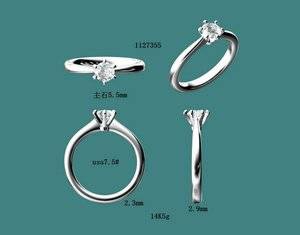

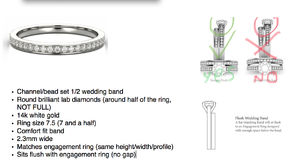

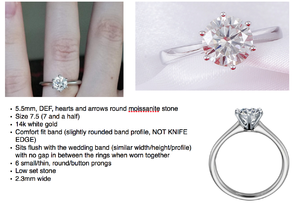

    I got this CAD from Starsgem and am a little confused. See my inspiration photos below and the CAD.

    What’s confusing me is:
    - will the rings actually sit flush together? How do I get across how to fix this?

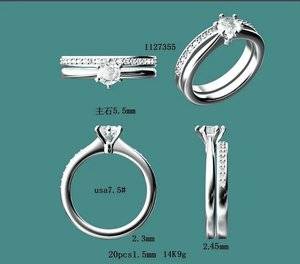

    - the 2.9mm measurement.. I certainly don’t want it that wide or that big Of a size difference between the rings (2.9 vs 2.45 if I’m reading right)
    - prongs look like claws but I just wanted round button type prongs

    Any advice would be great - my first time doing this!







  2. lovedogs
    Ideal_Rock

    Messages:
    8,424
    Joined:
    Jul 31, 2014
    by lovedogs » Jul 16, 2019
    I don't think it will sit flush bc of the donut, but I'm not a CAD expert, so don't take my word for it!
